BP151860LO and BP151830LO
Available in 2 sizes: BP151860LO - 15cm x 18cm x 60cm
and BP151830LO 15cm x 18cm x 30cm

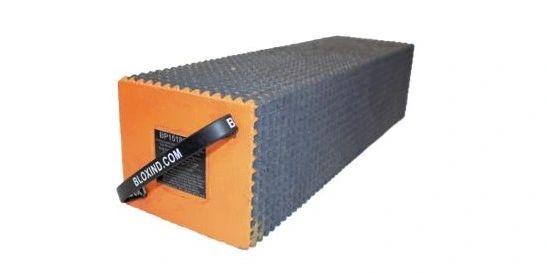

Heavy Duty Construction Jacking & Cribbing Blocks are a purpose built tool designed to replace timber blocks that had traditionally been used to stabilise machinery and equipment lifted for repair, maintenance or storage. All four sides of the block have either a cup or cone profile and combined with the rectangular shape gives the user flexibility to use the block as either 15cm or 18cm height. As with all Blox pieces the top block in a stack can be flipped to provide a flat surface for jacking.
These blocks are ideal in high tonnage load bearing stabilising applications like large structures, bull dozers, scrapers, graders and alike. The BP151830LO and BP151860LO are perfect inclusions in service van tool kits as they are compact with high load bearing capacity.
Product Description
The BP151860LO and BP151830LO our 4 sided jacking and support blocks are a safer alternative to timber dunnage and blocks used in jacking and stabilising task. Made from recycled plastic to a repeatable formula, strict manufacturing process and quality controls ensure product uniformity. Being made from recycled material is great for the environment and ensures the product meets full sustainability.
- Certified load rated capacity
- Working Load Limit (WLL)* 122kg/cm2
- Tested under the guidance of AS1170.0.2002 and AS2498.3.1998
- Comprehensive Technical Data Sheets (TDS) available
- 100% recycled high density polyethylene (HDPE) construction for durability
- Lightweight
- Resistant to fuels, oils and most common chemicals
- Will not splinter or rot
- Non-conductive
- Sturdy lanyard for ease of handling
- Operating Temperature range -40°C to +75°C
- 50 year warranty against splitting, rotting, absorption, termites and mould
* Total Block Working Load Limit (WLL) is based on a full press load evenly distributed across the top and bottom surfaces of the cribbing block.
Total Block Weights:
BP151860LO = 12.6kg
BP151830LO = 5.9kg
Warning: Always perform your own risk assessment before using this product. Always know the weight of the equipment or machine being supported. Consult your equipment and machinery manufacturer manual and guidelines for recommended blocking and lifting points. Never exceed the maximum WLL of the cribbing blocks or cribs. Under no circumstances does the WLL mentioned above take into consideration point loading or uneven weight distribution of the supported load. Copies of Technical Data Sheets can be obtained from the resource page of this web site, email info@bloxind.com or phone 02 9674 7428.
